BV6805
WL-CSP-16B
1.64mmx1.64mm
BV6805 is a highly integrated SIBO AMOLED PMIC featuring a maximum output current of 150mA and dynamic-OVSS.
BV6806
WL-CSP-16B
1.64mmx1.64mm
BV6806 is a highly integrated SIBO AMOLED PMIC featuring a maximum output current of 150mA and dynamic-OVSS.
BV6811
WL-CSP-12B
1.39mmx1.64mm
New Generarion SIBO PMIC for Wearable AMOLED with ±2.8V output voltage and Max. 100mA output current.
BV6813
WL-CSP-12B
1.20mmx1.60mm
BV6813 is a SIDO PMIC for new type LTPO AMOLED with Max. output current 100mA.
BV6801
WL-CSP-16B
1.64mmx1.64mm
BV6801 is a SIBO AMOLED PMIC with ±2.8V output voltage and Max. 100mA output current.
BV6802/A
WL-CSP-16B
1.64mmx1.64mm
BV6802 is a SIBO AMOLED PMIC with 2.8V/4.6V/-2.4V output voltage and Max. 100mA output current.
BV6803
WL-CSP-16B
1.64mmx1.64mm
BV6803 is a highly integrated power solutions with SIBO, and LDO to generate two positive and one negative output voltages.
BV6804
WL-CSP-16B
1.64mmx1.64mm
BV6804 is a SIBO AMOLED PMIC with ±3.3V output voltage and Max. 100mA output current.

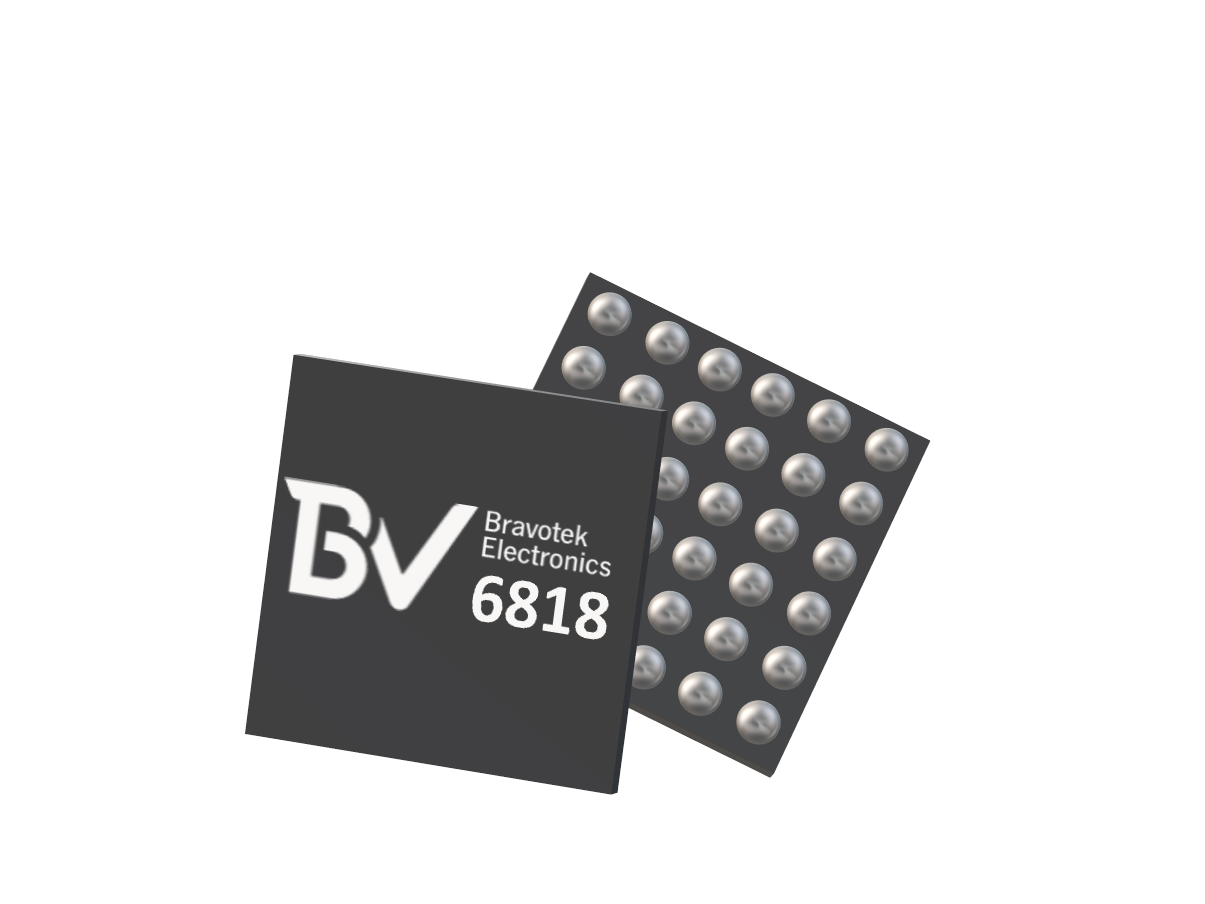

BV6818
WL-CSP-36B 2.5mmx2.5mm
QFN-12L 4mmx4mm
BV6818 is the Logic PMIC for NB/Tablet AMOLED featuring a optimized PCB area with SITBO technology
Vin Range
2.9V ~ 5V
Vout Range
-14V ~ 9.5V
Max Iout
3A
Output Rail
3 VDD + PAVDD + 2 VGH + 2 VGL
Download
BV8001A/BQ-QW
WQFN-24L 4mmx4mm
AEC-Q100 Grade 1
17V Input 5-CH PMIC with one inductor for automotive camera module and compact system.
Vin Range
4.5V ~ 17V
Vout Range
0.6V ~ 5V
Max Iout
2A
Output Rail
4 DC/DC + 1 LDO
Download
BV8002A/BQ-QW
WQFN-24L 4mmx4mm
AEC-Q100 Grade1
17V Input 6-CH PMIC with one inductor for automotive camera module and compact system.
Vin Range
4.5V ~ 17V
Vout Range
0.6V ~ 5V
Max Iout
2A
Output Rail
4 DC/DC + 2 LDO
Download
BV8003A/BQ-QW
WQFN-28L 4mmx4mm
AEC-Q100 Grade 1
17V Input 7-CH PMIC with two inductors for automotive camera module and compact system.
Vin Range
4.5V ~ 17V
Vout Range
0.6V ~ 5V
Max Iout
3A
Output Rail
5 DC/DC + 2 LDO
Download
BV8001 A/B
QFN-24L
4mmx4mm
17V Input 5-CH PMIC with one inductor for cameral module and compact system.
BV8002 A/B
QFN-24L
4mmx4mm
17V Input 6-CH PMIC with one inductor for camera module and compact system.
BV8003 A/B
QFN-28L
4mmx4mm
17V Input 7-CH PMIC with two inductors for camera module and compact system.
BV8060
WLCSP-25B
2.0mmx2.0mm
Two DC/DC Converters and Two LDOs with Only One Inductor, Integrated with a Battery Charger
Vin Range
2.7V ~ 5.5V
Vout Range
0.4V ~ 5.56V
Max Iout
1.5A
Output Rail
1 Buck-boost + 1 Buck + 2 LDO
Download
BV8061
WLCSP-16B
1.75mmx1.80mm
Four DC/DC Outputs and One LDO with One Inductor for Compact Wearable Devices
BVP62840
FCDFN-8L 2.0mmx1.5mm
WLCSP-6B 1.5mmx1.0mm
Ultra-low Quiescent Current 120nA, 2.5V to 5.5V, 750mA
Synchronous Step-Down Converter
Synchronous Step-Down Converter
BVP62841
FCDFN-8L 2.0mmx1.5mm
WLCSP-6B 1.5mmx1.0mm
Ultra-low Quiescent Current 120nA, 2.5V to 5.5V, 750mA
Synchronous Step-Down Converter
Synchronous Step-Down Converter

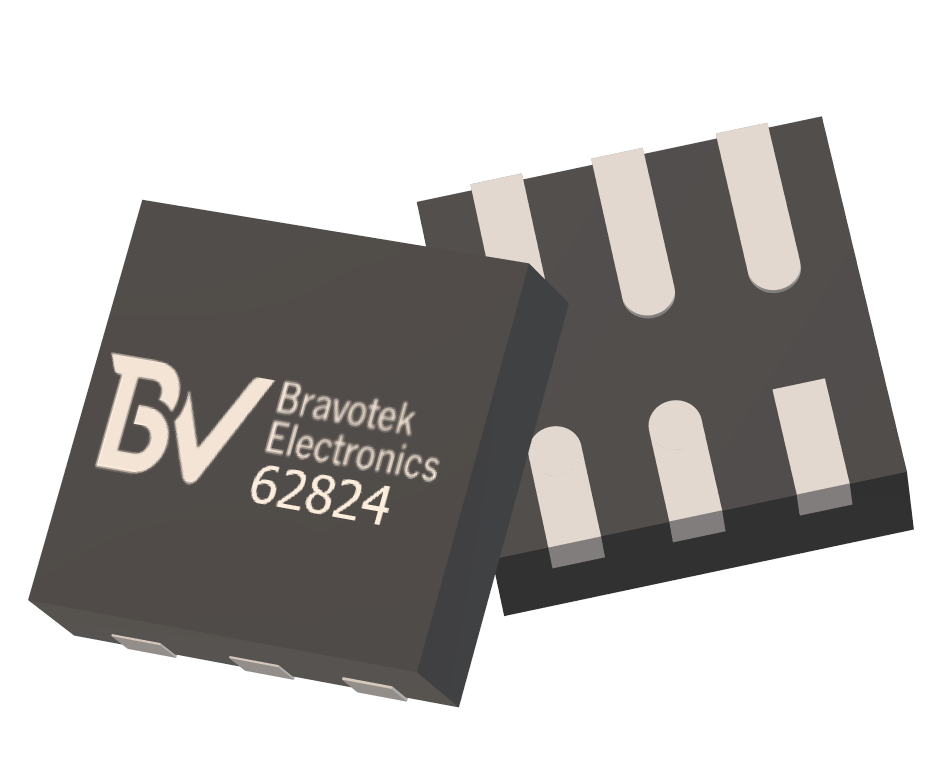

BVP62824
FC-QFN-6
1.5mmx1.5mm
BVP62824 is 5V/1A buck featuring fast heavy load transient response.
Vin Range
2.5V ~ 5.5V
Vout Range
0.6V ~ 4V
Max Iout
1A
Output Rail
DC/DC Buck
Download

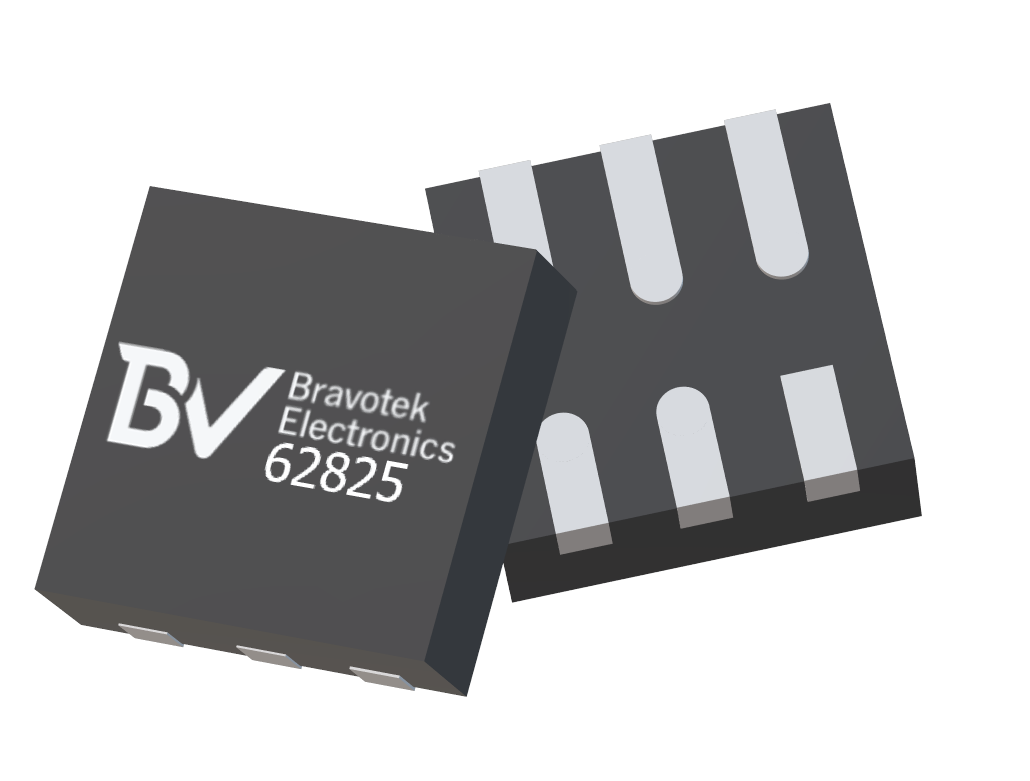

BVP62825
FC-QFN-6
1.5mmx1.5mm
BVP62825 is 5V/2A buck featuring fast heavy load transient response.
Vin Range
2.5V ~ 5.5V
Vout Range
0.6V ~ 4V
Max Iout
2A
Output Rail
DC/DC Buck
Download
BVP36006 A/B/C
FCQFN-12L 2mmx3mm
SOP-8 3.9mmx4.9mm
3.9V to 60V 600mA Synchronous Buck Converter with Ultra-Low EMI in a FCQFN-12L 2x3 and SOP-8 4x5
BVP36015 A/B/C
FCQFN-12L 2mmx3mm
SOP-8 3.9mmx4.9mm
3.9V to 60V, 1.5A Synchronous Buck Converter with Ultra-Low EMI in FCQFN-12L 2x3 and SOP-8 4x5
BVP33620 A/B/C
FCQFN-12L 2mmx3mm
SOP-8 3.9mmx4.9mm
Vin 3.9V to 36V, 2A Synchronous Buck Converter with Ultra-Low EMI in QFN-12L 2x3 or SOP-8 for general applications
BVP33630 A/B/C
FCQFN-12L 2mmx3mm
SOP-8 3.9mmx4.9mm
Vin 3.9V to 36V, 3A Synchronous Buck Converter with Ultra-Low EMI in QFN-12L 2x3 or SOP-8 for general applications
BVP36006 A/B/C-Q1
FCQFN-12L 2mmx3mm
AEC-Q100 Grade1
3.9V to 60V 600mA Synchronous Buck Converter with Ultra-Low EMI in a FCQFN-12L 2x3 with AEC-Q100 grade 1 qualified.
BVP36015 A/B/C-Q1
FCQFN-12L 2mmx3mm
AEC-Q100 Grade1
3.9V to 60V 1.5A Synchronous Buck Converter with Ultra-Low EMI in a FCQFN-12L 2x3 with AEC-Q100 grade 1 qualified.
BVP33620 A/B/C-Q1
FCQFN-12L 2mmx3mm
AEC-Q100 Grade1
Vin 3.9V to 36V, 2A Synchronous Buck Converter with Ultra-Low EMI in flip-chip FCQFN-12L 2x3 for automotive applications
BVP33630 A/B/C-Q1
FCQFN-12L 2mmx3mm
AEC-Q100 Grade1
Vin 3.9V to 36V, 3A Synchronous Buck Converter with Ultra-Low EMI in flip-chip FCQFN-12L 2x3 for automotive applications
BV8042
Client SSD PMIC
WL-CSP-36B 2.76mmx2.4mm
BV8042 is a PMIC designed for client SSD modules, offering highly programmable outputs.
Vin Range
2.7V ~ 5.5V
Vout Range
0.4V ~ 3.78V
Max Iout
13A
Output Rail
4 DC/DC + 2 LDO
Download
