單電感多路輸出
The BV8001Q-QW is a highly integrated power solution with a 4-ouput SIMO buck converter, 1 LDO to generate five positive output voltages with only one inductors.
The PMIC can achieve much smaller PCB area and lower BOM cost than traditional multi-channel PMIC which needs more inductors. The overall power conversion efficiency of BV8001 is also comparable with that of a traditional PMIC integrating several dc/dc converters and LDOs. The output voltages and power sequence of the voltage output rails can be adjusted by II2 interface and built-in NVM based on application requirement.
BV8001Q-QW is an AEC-Q100 grade 1 qualified solution for automotive camera module and is available in the QFN-24L 4mmx4mm package.
The PMIC can achieve much smaller PCB area and lower BOM cost than traditional multi-channel PMIC which needs more inductors. The overall power conversion efficiency of BV8001 is also comparable with that of a traditional PMIC integrating several dc/dc converters and LDOs. The output voltages and power sequence of the voltage output rails can be adjusted by II2 interface and built-in NVM based on application requirement.
BV8001Q-QW is an AEC-Q100 grade 1 qualified solution for automotive camera module and is available in the QFN-24L 4mmx4mm package.
特徵
- Input Voltage Range 4.5 to 17V
- SIMO Buck Converter output
- The Highest Output Voltage VO0 Setting: 5.0V, 4.2V, 3.6V, or 3.3V. Max loading is 300mA with 3.3V as default.
- The 1st Output Voltage VO1 Range: 0.6V to 3.6V, step is 0.1V and Max loading is 600mA with 1.8V as default
- The 2nd Output Voltage VO2 Range: 0.6V to 3.6V, step is 0.1V and Max loading is 1A with 1.2V as default.
- The 3rd Output Voltage VO3 Range: 0.6V to 2.1V, step is 0.05V and Max loading is 1A with 1.1V as default.
- LDO Output
- The 3rd Output Voltage VO3 Range: 0.6V to 3.6V, step is 0.1V and Max loading is 300mA with 2.8V as default
- Built-in non-volatile memory (NVM) for presetting output voltages and power sequence
- Power Good function with programmable delay time
- 1MHz/2.1MHz switching frequency for A/B
- AEC-Q100 qualified with operating junction temperature range from –40°C to 125°C
應用
- Automotive Camera Module
性能

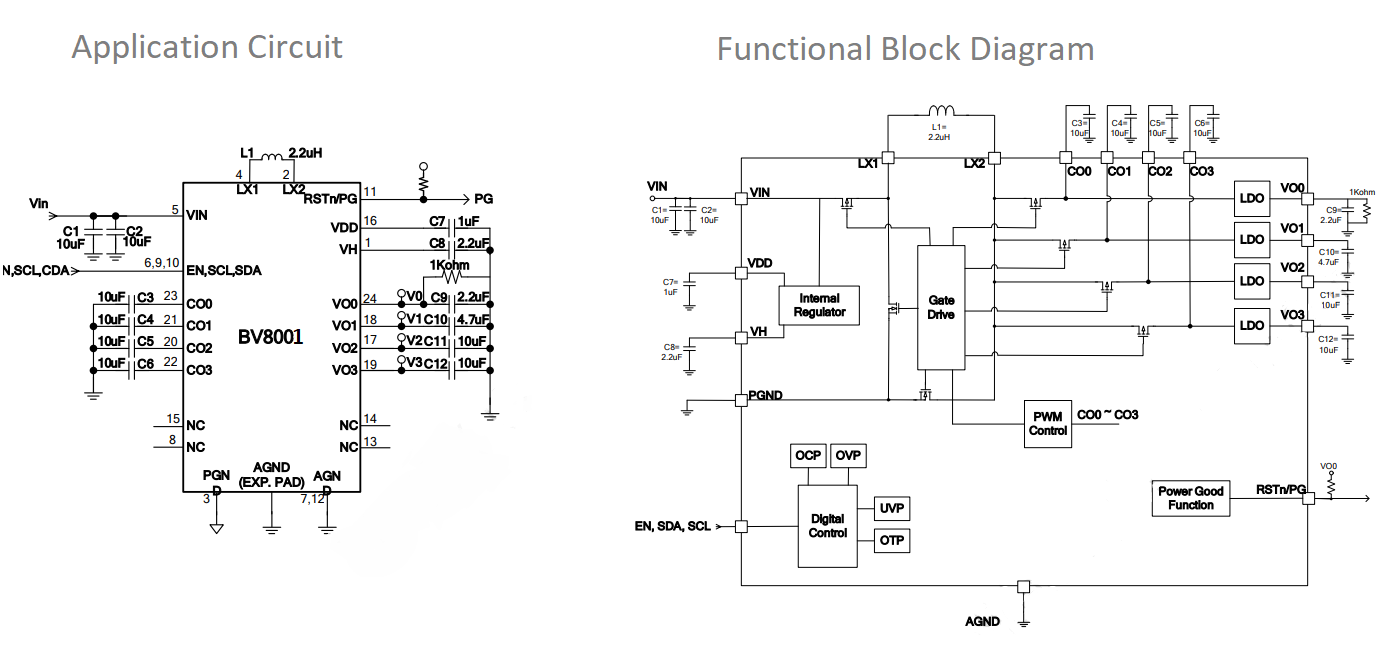

電路圖
